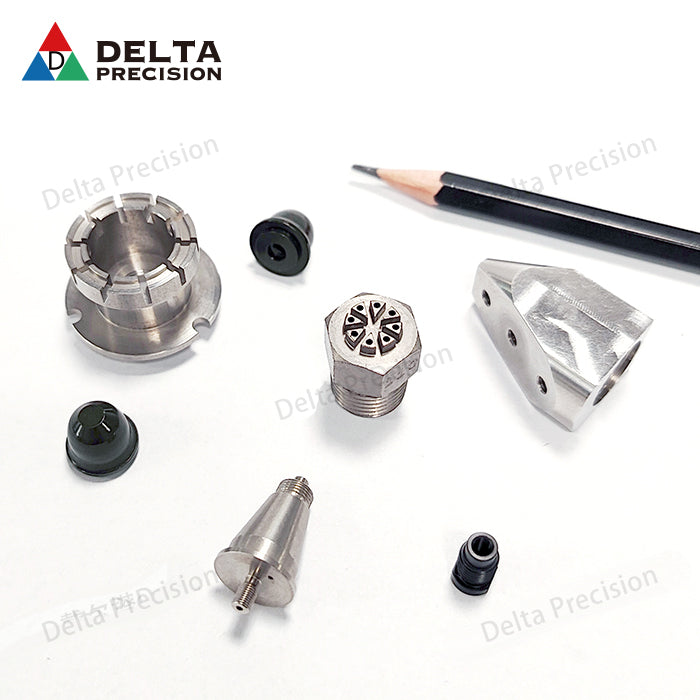

precision small nozzle

Non-standard precision nozzles are a type of nozzle that is customized according to specific requirements, featuring high precision and special performance.

Design and Manufacturing

Customized design: Non-standard CNC Machined Nozzles are designed based on specific application scenarios, process requirements, and special customer needs. For instance, in some special spraying processes, the nozzle needs to be capable of generating a spray of a specific shape, such as a fan, cone or band, etc. This requires special design of the internal structure and outlet shape of the nozzle.

High-precision Nozzle Manufacturing processing: Advanced processing technologies and equipment, such as CNC machining centers and electrical discharge machining, are adopted to ensure the dimensional accuracy and surface quality of the nozzles. The parameters such as the aperture, depth and inner wall roughness of the nozzle can all be precisely controlled, thus ensuring the stable and reliable spray performance of small nozzle.

Characteristics

High precision: It can precisely control parameters such as the flow rate, Angle, and particle size of the spray, meeting the requirements of various high-precision processes.

Material diversity: Select appropriate materials to manufacture nozzles based on different usage environments and media. Common materials include stainless steel, polytetrafluoroethylene, etc.

Excellent spray performance: It can produce uniform and stable spray, with fine and evenly distributed spray particles.

Application field

Industrial Nozzle Customization: In industries such as automotive manufacturing and mechanical processing, it is often used in processes like cleaning, spraying, and cooling of parts. For instance, in an automotive painting production line, non-standard precision Nozzle pipe can evenly spray paint onto the surface of the vehicle body, ensuring the quality of the painting.

Electronic semiconductors: In fields such as chip manufacturing and electronic component production, they are used in processes like photoresist spraying and cleaning solution injection. For instance, during the chip manufacturing process, photoresist is precisely sprayed onto the wafer through high-precision nozzles, providing a guarantee for the subsequent photolithography process.

In the field of environmental protection: It is used in environmental protection equipment such as waste gas treatment and sewage treatment for processes like spray desulfurization, denitrification and disinfection. For instance, in waste gas desulfurization equipment, non-standard precision jet nozzles spray alkaline solutions into the waste gas, where they undergo chemical reactions with pollutants such as sulfur dioxide to achieve the purpose of desulfurization.

The medical industry: It is widely applied in the cleaning of medical devices, drug atomization and other aspects. For instance, the nozzle in a medical nebulizer can atomize the drug solution into tiny particles, making it convenient for patients to inhale for treatment.

Our Manufacturing Technique:

Our Inspection Equipments:

Our Workshops:

Our Company Certificates:

If you need precision small nozzle, please contact us and we will customize a precise processing plan for you.
